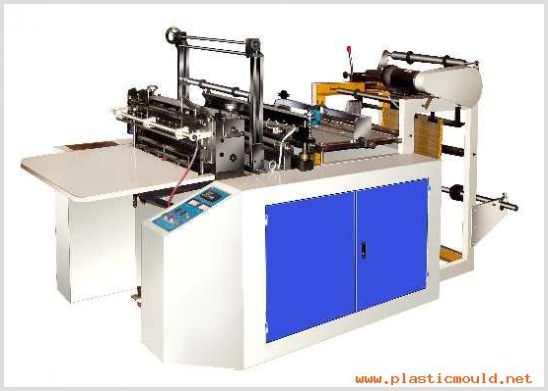

Computer Automatic Heat-sealing and cooling cutting Machine
USER:
This machine is suitable for making HDPE and LDPE vest bags, flat bags, handbags (for clothes and shoes), disposable medical packing bags and bags for sanitary napkins
FEATURE:
1.The cool cutter is made of special steel, sharp and anti abrasive. Since there is a micro adjusting device, the cutter can be easy adjusted for different thickness materials.
2 The seal cut can be turned over 180degree, so it is very convenient to renew the rubberized fabric and have routine and preventive maintenance.
3, by employing digital device and high precise and good qualified mechanical components, the machine can work freely on products of multi length with high speed.
4, Sealing and cool cutting is at same stage, no tension on feeding but the bag bottom firmly sealed.
5 The machine alarms and stops when the products has error print, by this, it reduces wastrels.
6 The feeding system consists of photoelectrical parts, stepping motor and adjusting parts, and it is easy for operation and precise for making bags
Main Technical Parameter
Max. sealing and cutting width 1250 mm
Max. sealing and cutting length 2000 mm
Sealing and cutting thickness 0.006-0.10mm
Bag-making Speed 30-120pcs/min
Heating Power 2.0kw
Power of Main Motorr 2.2kw
Weight of Machine 1200kg
Overall Dimension 3100*1900*1700mm
