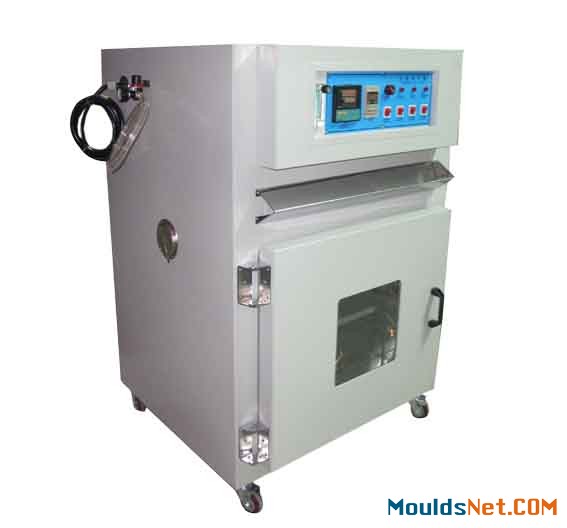

High Temperature Furnace price
application:
High temperature oven are used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.
High Temperature Blast Oven / features:
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating
technical parameters:
|
Model
|
RHD - 60
|
|
Internal Dimension W*H*D (mm )
|
500*600*500
|
|
External Dimension W*H*D(mm )
|
700*1200*650
|
|
Interior and Exterior
Material
|
Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
|
|
Temperature Range
|
R.T. to 200°C; (300 to 500°C is optional)
|
|
Indication Resolution / Distribution Uniformity of Temperature
|
0.1°C/±2.0°C;( When temperature is 100°C)
|
|
Control Accuracy of Temperature
|
±0.5°C;
|
|
Temperature Rising Velocity
|
Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins
|
|
Control Method
|
Micro PID+SSR+Timer
|
|
Storage Shelf
|
Two layers
|
|
Viewing Window
|
When temperature is RT to 200°C ,with viewing widow
When temperature is 200°C to 500°C ,without viewing widow
|
|
Power
|
AC 220V 50/60HZ ; AC 380V 50/60HZ
|
