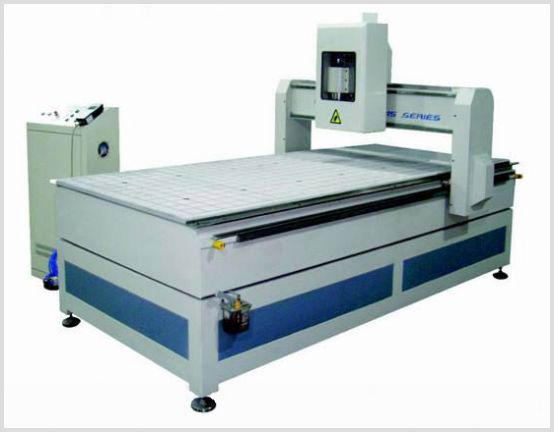

K1530 Series Technical Parameter: Model K1530 X-Y-Z axis working area 1,500 x3,000 x 200mm Machine size 2,300 x 3,650mm Resolutions 0.025mm X-Y movement rack and pinion, gear drive/Taiwan Z movement ball screw drive/Germany Guide Linear ?0 square/Taiwan Max. speed 35,000mm/min Max. cutting speed 25,000mm/min Spindle power 4.5kw(water cooling) /Japan NSK Spindle speed 24,000rpm Inverter power 7.5kw Drive motors stepper Working voltage AC380V/50-60Hz, 3-phase Command code G code Computer interface USB 2.2 Collet ER25-12.7mm,6mm,3.175mm Software Type3 Software/France Controls DSP0501 (Digital Signal Processor) Packing dimensions 2300 x 3670 x 1960 mm,2000 kgs Equipment available a.Vacuum hold down b.Auto cut adjusting device c.Oil lubrication system d.Clamps and vacuum fitting
