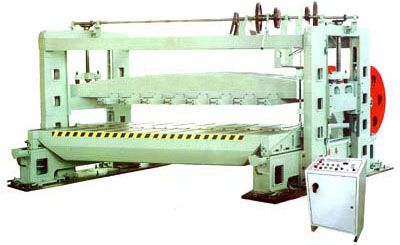

BB1130 Horizontal Veneer Slicers/lengthways veneer slicers/veneer slicing machines
Features
Adopting double-V-chute structure
Precise knife-in gear and unique pressure bar adjusting device
Specially manufactured one way super-clutch, guaranteeing the right thickness of processed sheets
Wood-clamping Mechanism
Electrical control center
Long-shaft crank fit with motors of higher power
Technical Parameter
Model BB1130(A)
Max.Workpiece size (Lxwxh) 3000x520x700
Slice blade Dia.(Lxwxh) 3000x200x20
Slicing thickness(Mm) 0.07~1.0
Slicing speed (Pcs/Min) 18~22
Wood-Clamping AUTO&MANUAL
Main motor(Kw) 22
Beam up&down motor (Kw) 4
Clamping motor (Kw) 0.18kwx8
Calibration Motor (Kw) 0.1
Overall dimension (Lxwxhmm) 8000x3680x2630
Weight(Kg) 18000
