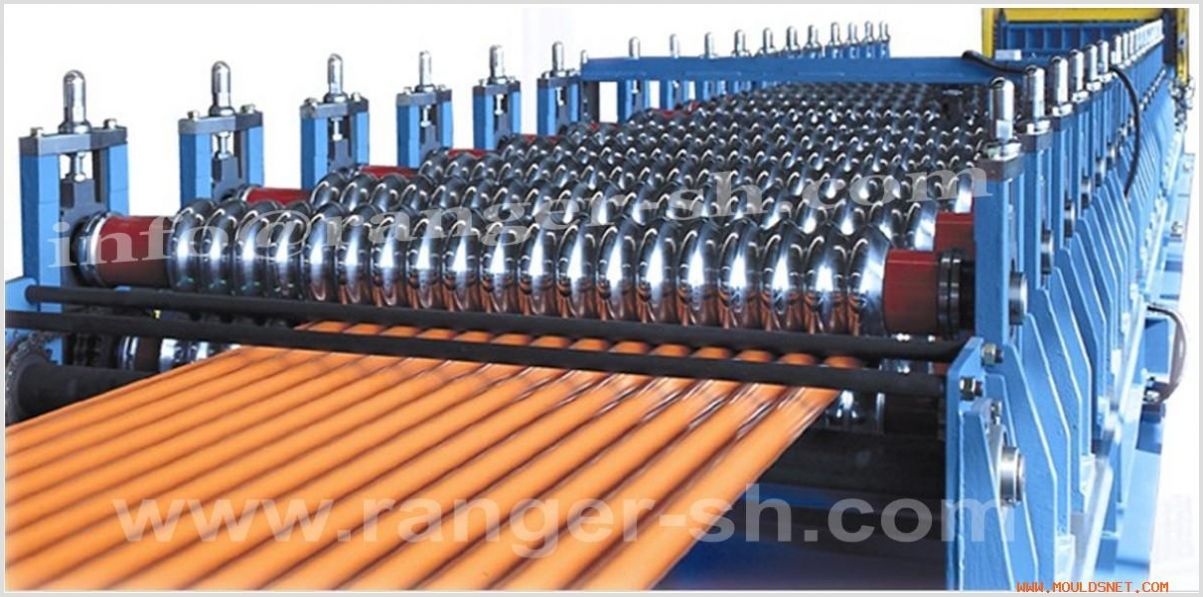

Corrugated Sheet Roll Forming Machine Shanghai:Corrugated sheet forming machine,corrugated forming machine,corrugated roll forming machine,corrugated sheet roll forming machine: Material width: 800—1000mm; The effective width:780--820mm; The thickness of Coil: 0.3—0.8mm; Loading weight: 5—8T; Total weight: 2.5T; forming speed:8—15 m/m; forming steps: 18 steps; The overall dimensions: 7600mmX1200mmX1100mm; PLC Control System: Panasonic PLC Control, LCD screen,touch screen, frequency converter; Voltage: 380V/50HZ/3phase;
