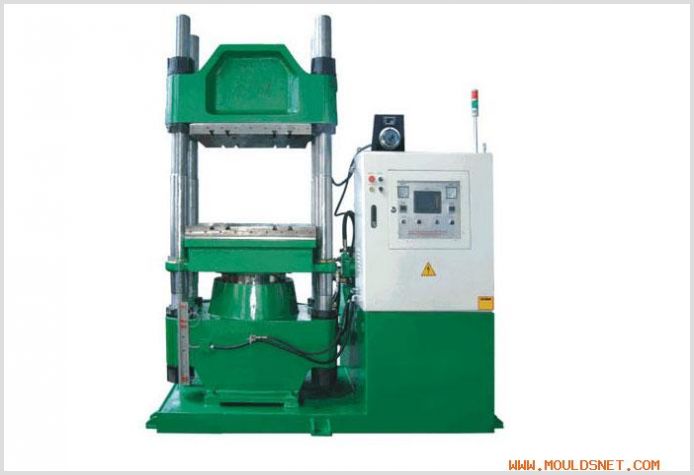

Compression molding machine Liwei series compression molding machine as below: Specifications unit lwd-750×800/2000kn lwd-860×900/ 3000kn lwd-1000×1100/ 5000kn Clamping force (*) kn 2000 3000 5000 System pressure mpa 21 21 21 Clamping stroke mm 300 350 600 Fast clamping speed mm/s ?mm/s ?mm/s ?mm/s Upper heater platen (*) mm 750x800 860x900 1000×1100 Down heater platen (*) mm 750x800 860x900 1000×1100 Heater platen distance mm 180~480 300~500 300~600 Max. Daylight (opening distance between two platens) (*) mm 800 1100 1100 Max temp. (*) 0c 250 250 250 Motor power kw 5.5 9.5 15 Heater power kw 18.3 18.3 25 Oil tank capacity l 480 480 550
