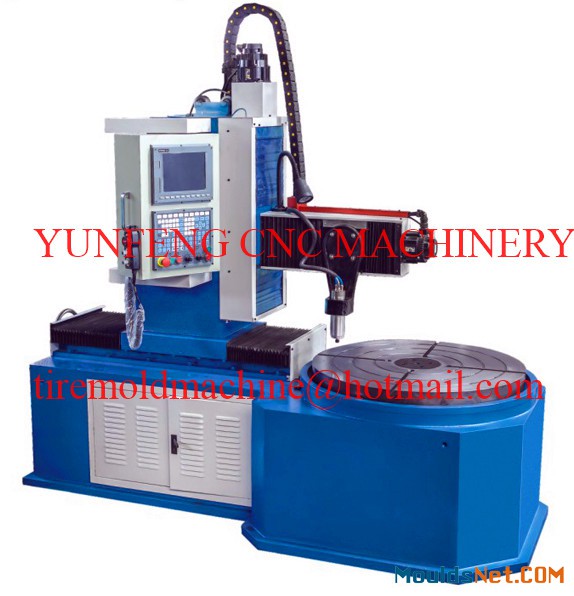

tyre mold lettering machinery

2018-05-16 16:2219

Content

Model	YFK-1600
X-axis moving parts	Cast iron and aluminum piece (optional)
X-axis rotary shaft	Worm gear high precision indexing plate
X-axis stroke	320mm
Z- axis stroke	330mm
Spindle speed	500-40,000 revolution/min
Spindle power	1KW
Faceplate diameter	900mm
Machining maximum diameter	1600mm
Maximum load	2000kg
Weight of machine tool	3800KG
Boundary dimension of machine tool	2300×1100×2200mm
